VIBRATORY MOTORS, VIBRATION & UNBALANCE MOTORS MANUFACTURERS

INTRODUCTION

STAR TRACE Vibratory motors are Robust, Reliable, High Loadable, Quiet Running and require no maintenance.

STAR TRACE Vibratory motors are totally enclosed 3Phase, Squirrel cage induction motors with adjustable, eccentric weights mounted at both ends of the shaft, to set up vibrations during rotation. The design of shaft and the selection of bearings has been carefully done to withstand heavy radial loads.

USES:
  • Plastics
  • Food
  • Petro-chemical.
  • Process/Packaging.
  • Mining.
  • Cement.
  • Power Stations.

Technical Data:

Centrifugal Force Range:From 42 to 14250N
Operating torque range suitable for vibrating units:From 3.6 to 3600 Kgs.
Working weight range:From 1 to 6000 Kgs.
Power connection:From 3Phase current with 50 Hz 415V A.C.
Rated consumption:0.1 to 10KW.
Ambient temperature:Upto 60 deg.C
Degree of protection:IP 65as in DIN 40 050, P.2
or
IP 55as in DIN IEC 34, Part 5.
Insulation class:F class.

APPLICATIONS OF VIBRATORY MOTORS

These motors are used in various material handling equipment such as vibrating screens, conveyors and feeder. They are also used on hoppers, silos to prevent congestion of material flow.

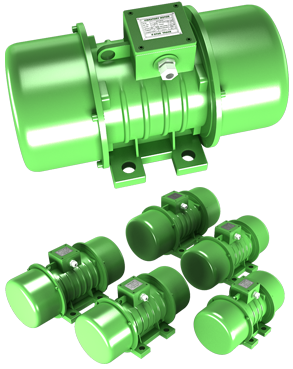

Vibratory Motor

These motors are used in various material handling equipment such as vibrating screens, conveyors and feeder. They are also used on hoppers, silos to prevent congestion of material flow. Foundry shake-outs and compacting machines use these motors for fast and efficient operation.

  • One of two lifting lugs.
  • Absolutely secure centrifugal mounting.
  • Quality-tested components, each motor tested under load.
  • Reliable starting by means of a high-powdered starting torque.
  • Permanent and well legible setting marketing of the unbalanced weights.
  • Vibration-proof joining through the considerable Tensility of the mounting screws.
  • Dust-tight and water-tight through a sealing covering with special circular rubber washer.
  • Universal mounting facilities through an optimum choice of inter spacing in the base mounting.
  • Embedded in high-quality impregnating resin vibration-proof winding, insensitivity to damp and dust.
  • Generously dimensioned cylindrical roller bearing, self lubricating maintenance-free, long life expectancy.

FEATURES OF VIBRATORY MOTORS

These motors are used in various material handling equipment such as vibrating screens, conveyors and feeder. They are also used on hoppers, silos to prevent congestion of material flow.

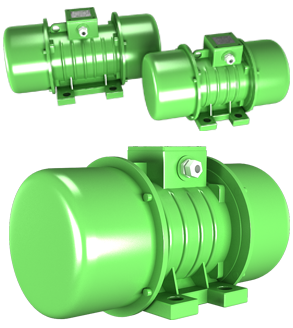

Vibratory Motor Features

The following are the features of Vibratory Motor:

  • Increased efficiency.
  • Enhanced reliability & low maintenance.
  • Rugged construction for tough environment.
  • Cylindrical roller bearing. Prelubricated for long life.
  • Robust design, body made from high grade C.I. casting.
  • Totally dust proof air cooled design. Can operate in dusty environments.
  • Winding F-Class insulated. Impervious to dust, moisture & vibrations.
  • Vibration force adjustable from zero to maximum by adjusting position of unbalance weights.

Specification Of Vibratory Motor Manufacturers

Type Maximum Operating
Torque KgCm		 Maximum
Centrifugal Force		 Suitable for Vibratory
Equipment within Weight
Range of Kg to Kg		 Weight
Approx		 Rated Output
KW		 Rated Current
of 50Hz 415V
A
2-Pole motor with approximately 2800rpm:-
ST-4 4.0 2200 20 70 22 0.19 0.8
ST-6 8.0 4000 50 100 24 0.37 1.0
ST-8 12.0 6100 110 360 28 0.75 1.4
ST-10 21.0 10200 200 610 44 1.10 1.6
4-Pole motor with approximately 1440rpm:-
ST-4X 22 2250 35 70 24 0.19 0.8
ST-6X 35 4300 55 175 31 0.37 0.9
ST-7X 52 6400 100 275 36 0.51 1.10
ST-8X 78 9500 1600 415 50 0.75 1.50
ST-10X 125 16000 300 730 72 1.1 1.90
ST-12X 150 22000 350 900 76 1.49 2.30
6-Pole motor with approximately 950rpm:-
ST-10W 210 11450 160 410 96 1.1 1.8
ST-12W 420 22950 460 960 120 1.49 3.0
ST-14W 630 34600 750 1500 150 2.30 5.7
ST-16W 960 52600 1030 2180 285 2.74 6.5
ST-18W 1275 70150 1480 3000 320 3.87 9.0
